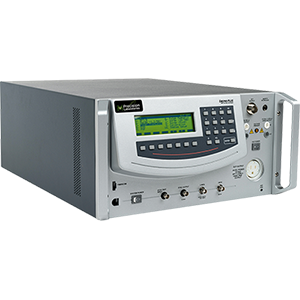

EMCPro Plus EMC Test System

Advanced EMC test system for compliance testing to IEC/EN standards

The M Precision Laboratories EMCPro Plus EMC Test System features resident capabilities

for EMC CE Mark compliance testing to IEC/EN standards, and fully addresses new requirements

for IEC 61000-4-4, IEC 61000-4-5 (Surge) and IEC 61000-4-11 (PQF).

Portable, mid-range EMC test system for design integrity testing

Resident capabilities for compliance testing to IEC/EN standards

Addresses ANSI/IEEE, ITU, ETSI and

Surge testing to 6.0kV with Combination, Telecom, and Ring Waves

Monitors surge voltage and current at the output terminals

Monitors output of the coupling unit and automatically switches connections according to coupling mode

Highest test levels, widest selection of tests and lowest in-use costs

Upgradable as standards change

A true, total immunity EMC test system The M Precision Laboratories EMCPro PLUS

is a midrange, multi-capability EMC immunity tester.

It operates via our easy to use Windows™ based PC software or from the front panel,

and is easily configured to meet immunity standards required for CE Marking and compliance requirements.

Portable and low cost, the EMCPro PLUS system is ideal for companies who require flexibility, versatility,

and the highest test level-to-cost ratio instrument on the market.

It also accommodates companies that test beyond levels dictated by the EMC Directive,

including demanding national and international standards such as ANSI/IEEE, ITU, ETSI, and UL,

as well as company- and market-driven test programs, which ensure quality and reliability in the field.

Users can configure custom test protocols to meet specific test requirements using the full line of options and accessories,

including mains and I/O line coupler/ decouplers, magnetic field monitors, coils, and more.

When test requirements change, or standards evolve, upgrading is a simple matter of adding appropriate options or accessories.

Breaking the 4.4kV voltage barrier for combination Wave, Telecom and Ring Wave Surge testing

The EMCPro PLUS test system features surge testing to 6kV with the combination, telecom and ring waves.

It is the only combination tester on the market to offer the combination wave with one of two additional built-in surge waveforms.

The EMCPro PLUS, and its many technically advanced, cost effective features will serve you well for many years to come.
