产品型号

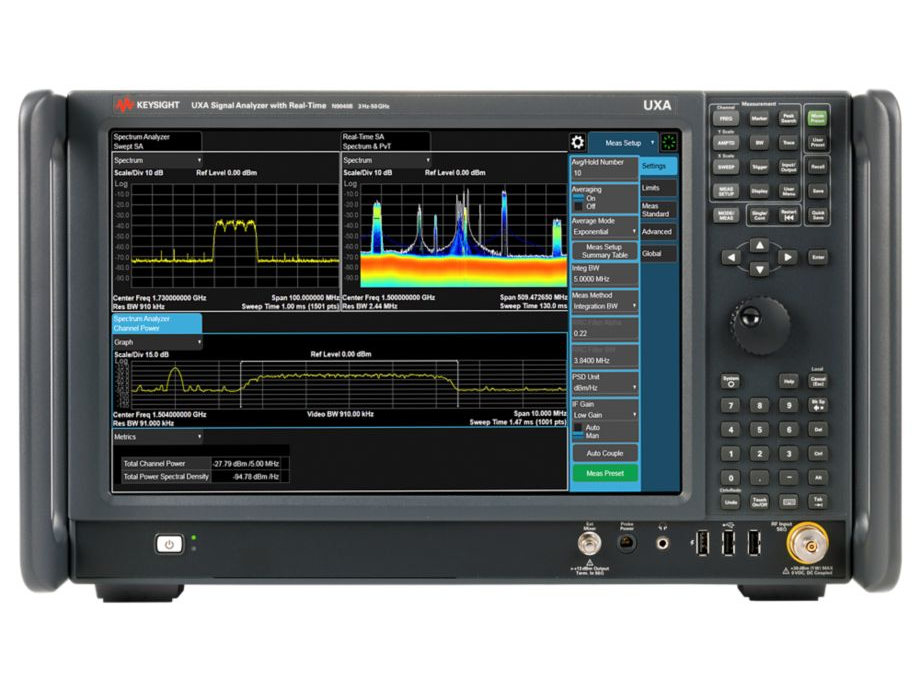

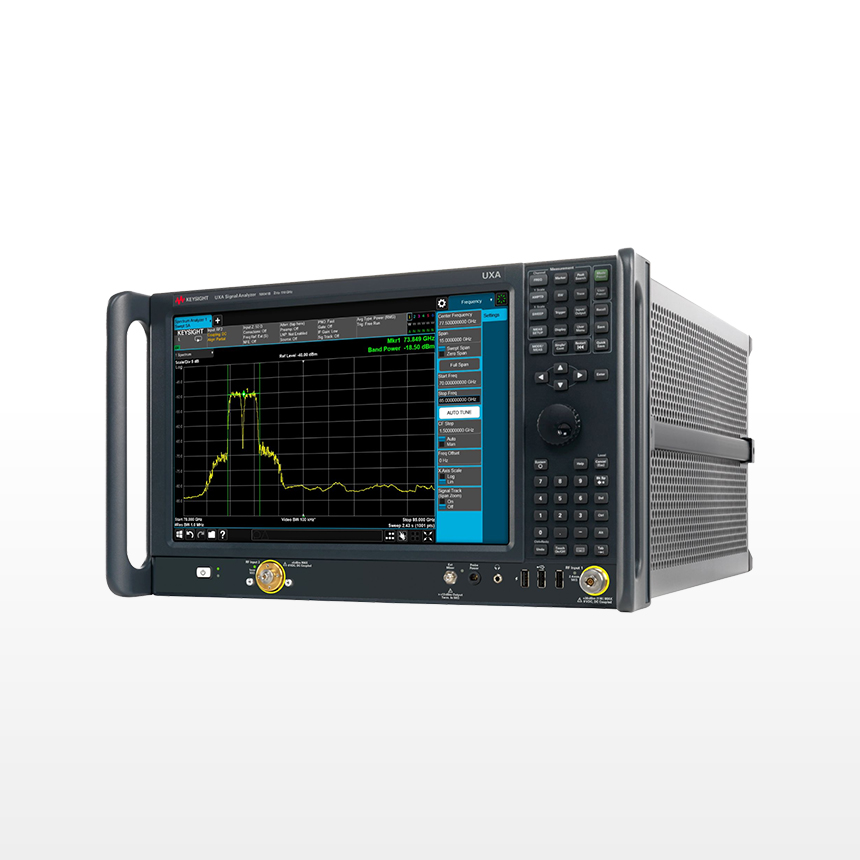

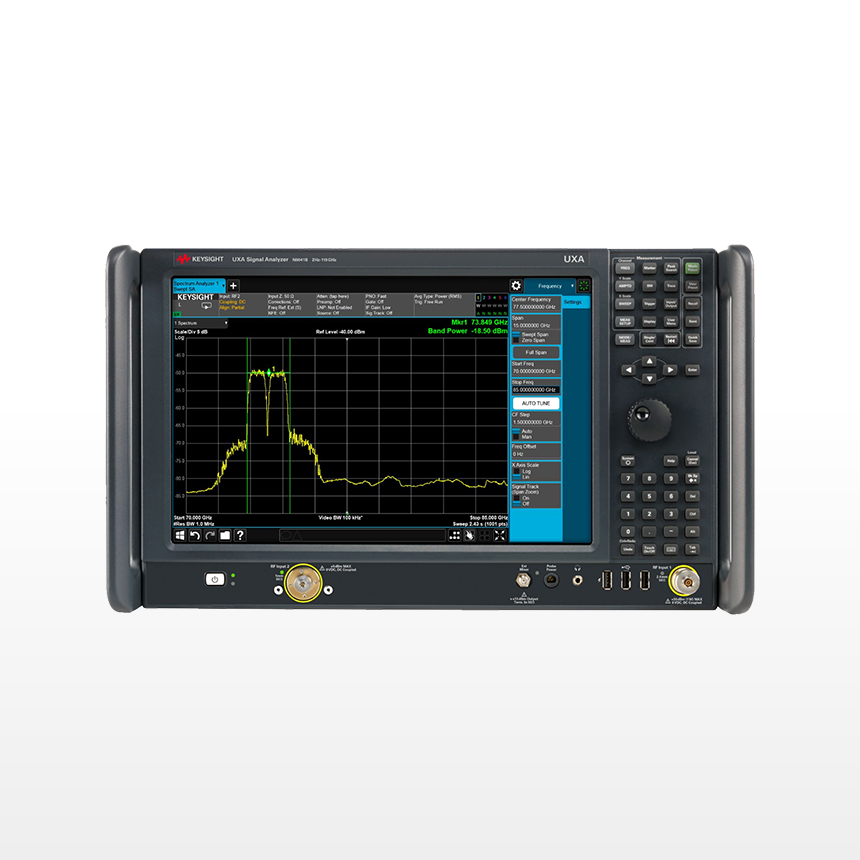

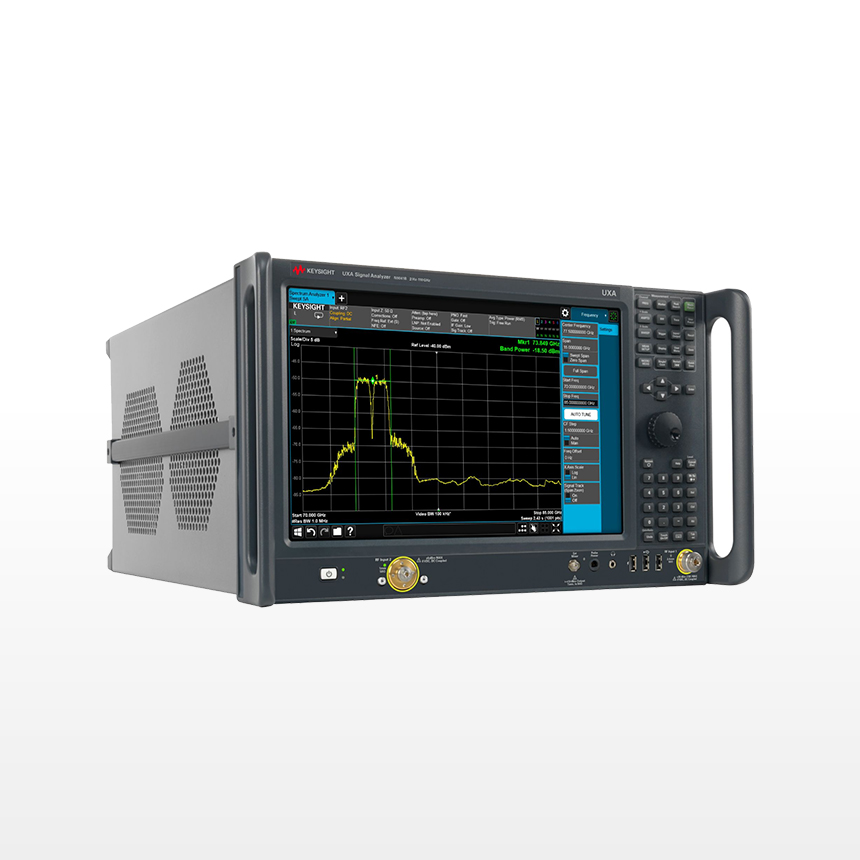

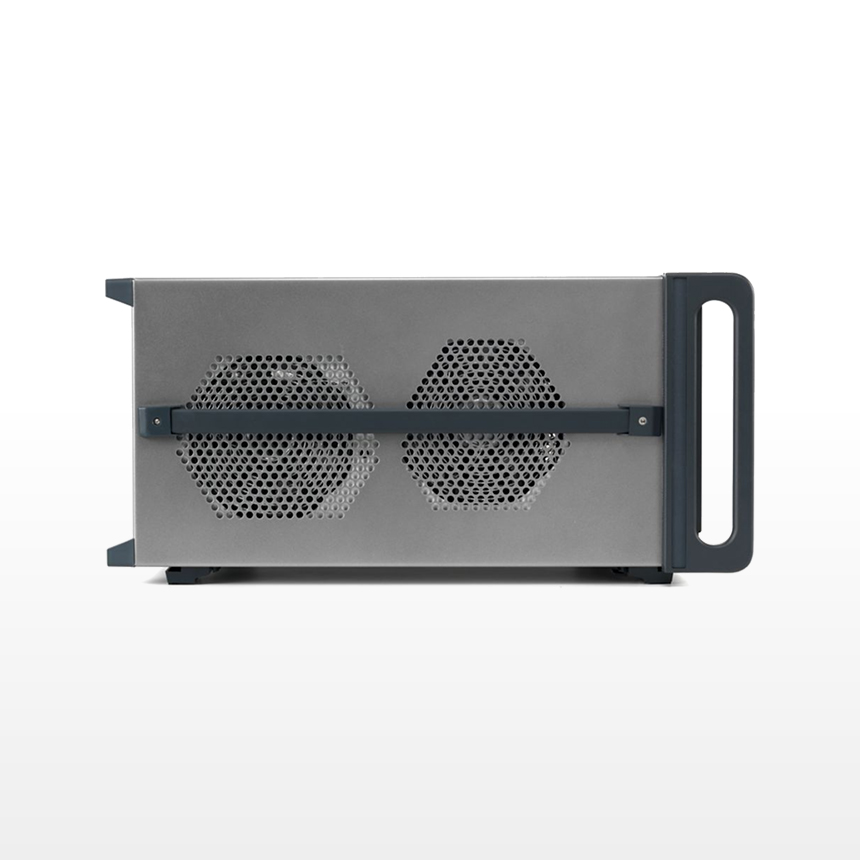

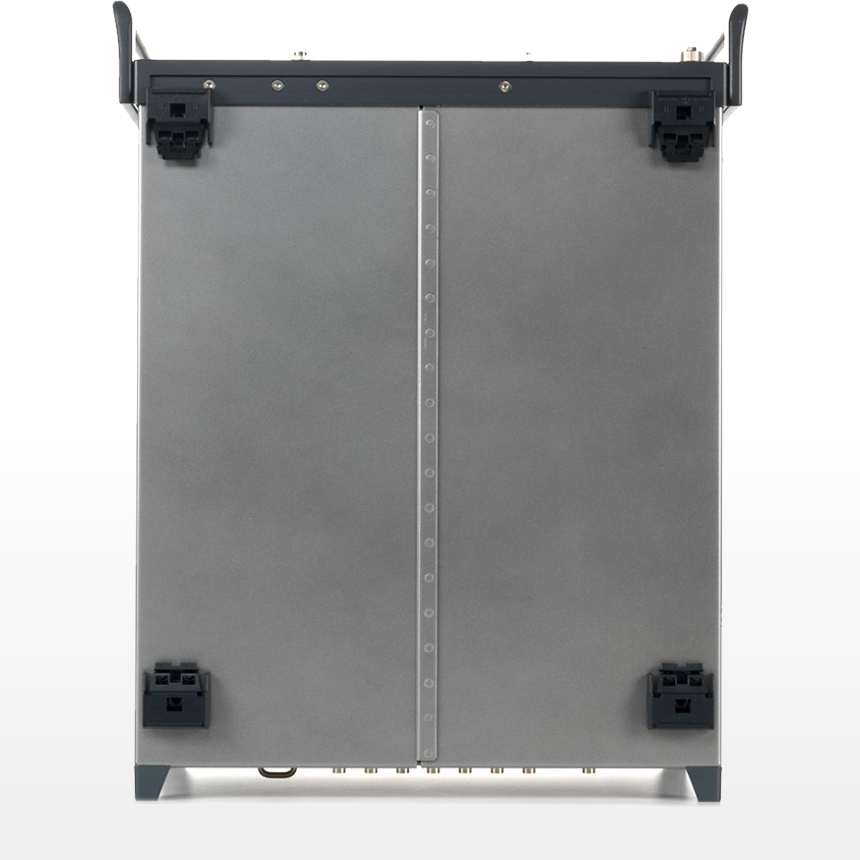

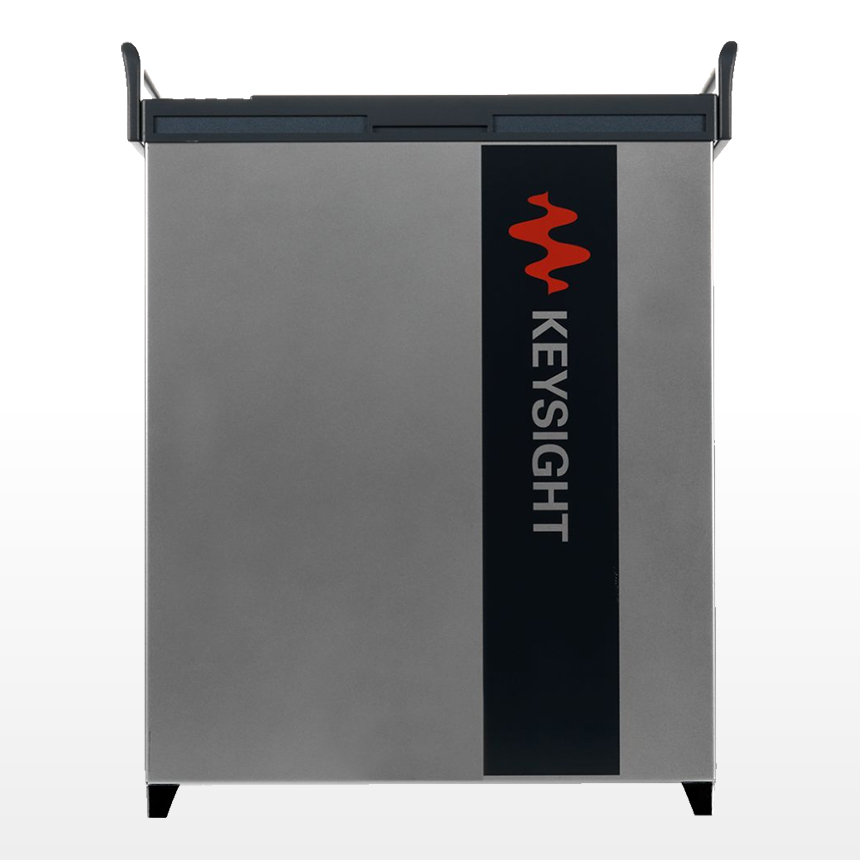

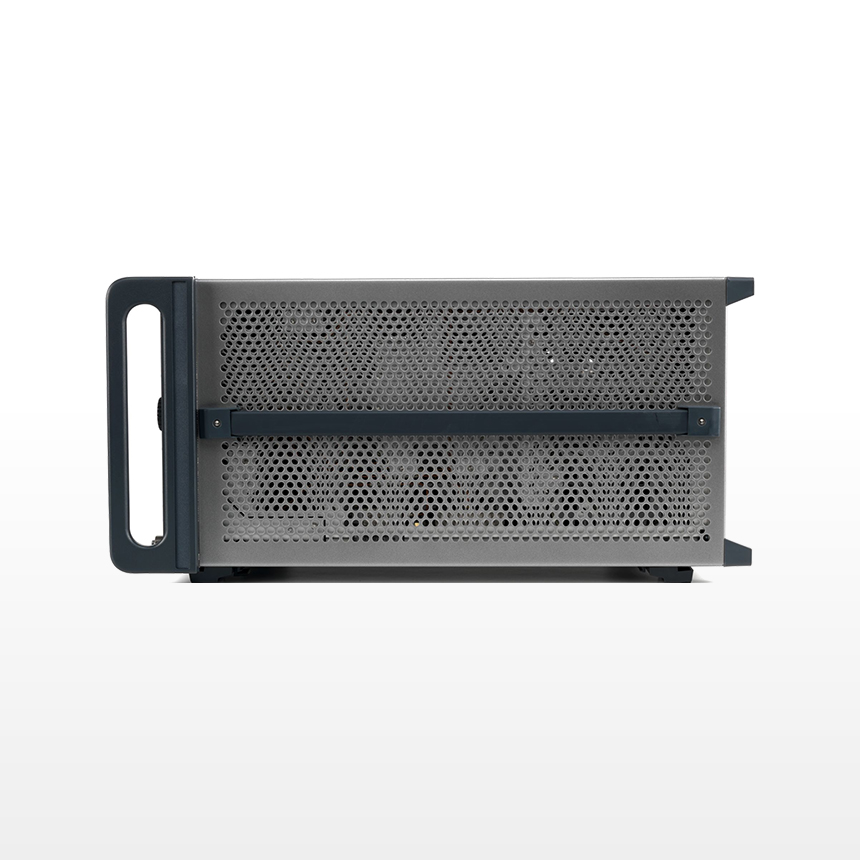

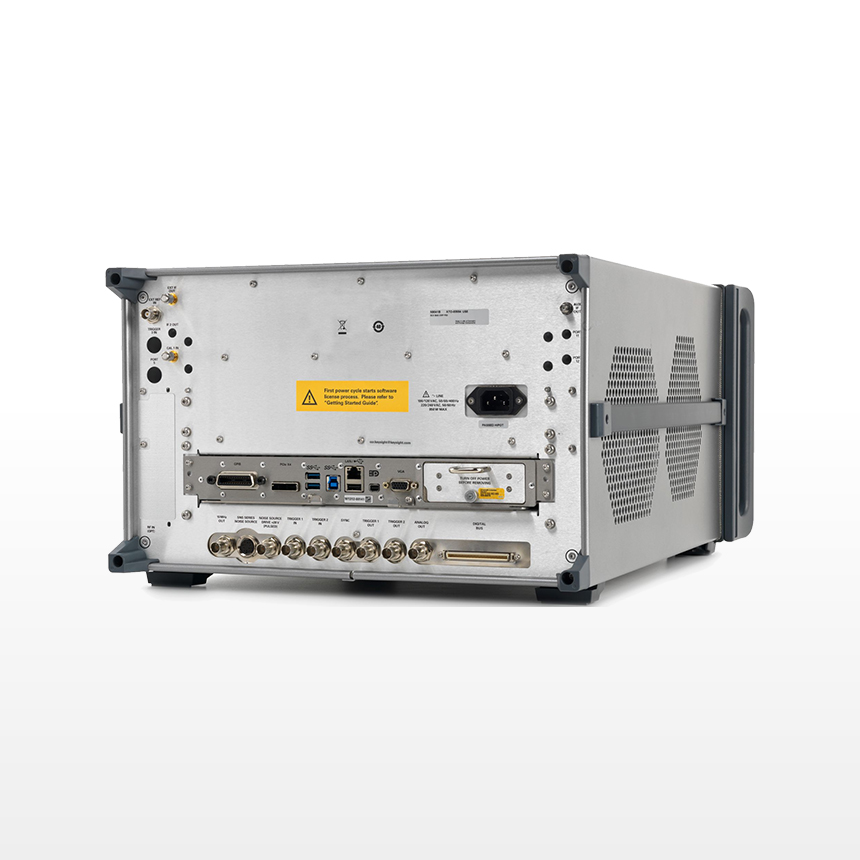

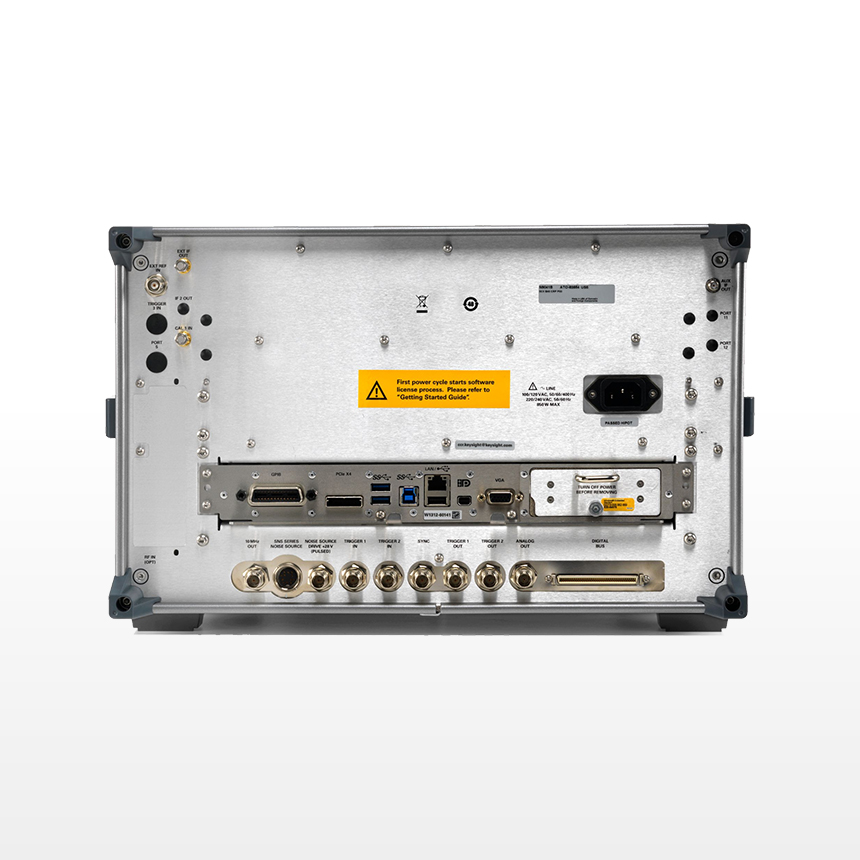

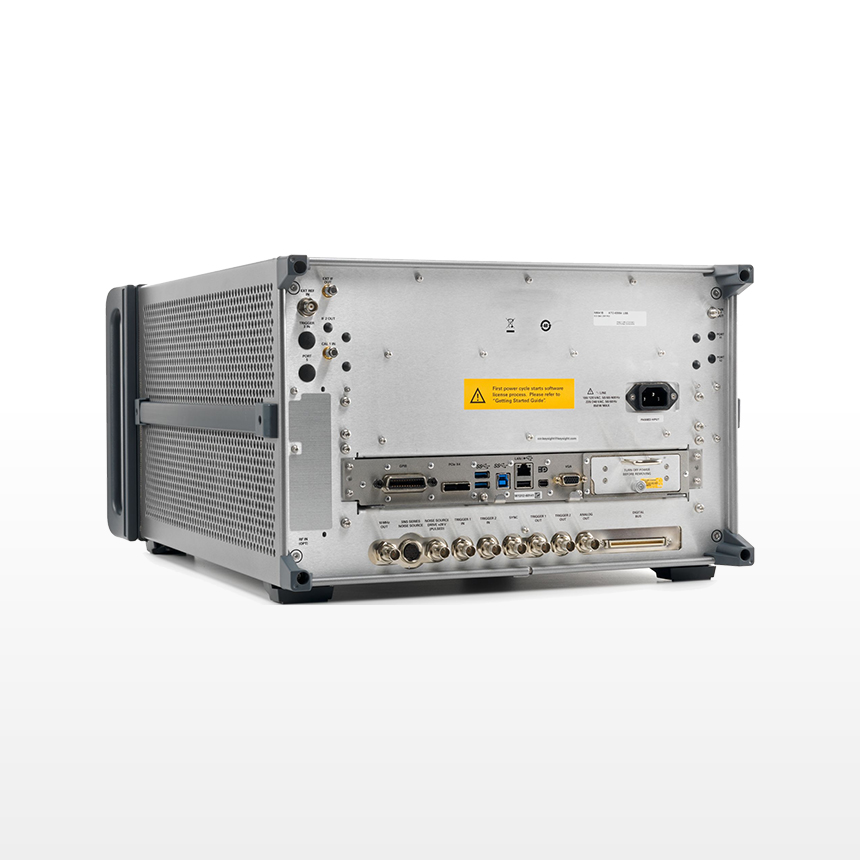

N9041B UXA 信号分析仪
多点触控，2 Hz 至 110 GHz
主要特性和功能
表征复杂的毫米波信号：5G、802.11、卫星、雷达
在高达 110 GHz 的频率范围内执行连续扫描
凭借最低 -150 dBm/Hz（> 50 GHz）的 DANL，可以捕获更低电平的杂散信号
简化对最新宽带信号的分析：1 GHz 全积分瞬时带宽；使用外部中频输出可达 5 GHz
X 系列信号分析仪
利用我们最先进的信号分析工具帮助您进行设计、测试，实现新的突破
提供从最高性能实时分析到低成本基本测量等多个选择
使用最广泛的特定应用软件，实现更深层次的故障诊断或执行一键式测量
产品通过售后升级服务可以伴随技术的变化演进，包括频率、带宽、实时、CPU 等
不论您使用哪一款仪器，从研发到生产都能保持 100% 的代码兼容性，可确保在公司内部实现一致性测量
通过切实可用的性能更快获得分析结果
全新多点触控用户界面让测量设置变得简单明了，并提供定制视图
利用实时频谱分析功能查看、捕获并分析最罕见的信号，包括已知和未知信号
凭借 510 MHz 带宽和 >75 dBc 无杂散动态范围，查看以往难以观测的信号
使用本底噪声扩展（NFE）技术将测量噪声降低最多 10 dB，可以提高低电平信号测量的精度
技术指标
| 频率 | 2 Hz 至 110 GHz |
|---|---|
| 频率选件 | 90, 110 GHz, Mixers to 1.1 THz |
| 标准衰减器衰减范围 | 70 dB |
| 标准衰减器步进 | 2 dB |
| 实时带宽选件 | 255 MHz |
| 1 GHz 时的 DANL | -174 dBm |
| 最大分析带宽 | 1 GHz |
| 1 GHz 时，1 MHz 频偏处的相位噪声 | -147 dBc/Hz |
| 1 GHz 时，10 kHz 频偏处的相位噪声 | -135 dBc/Hz |
| 1 GHz 时，30 kHz 频偏处的相位噪声 | -136 dBc/Hz |
| 无杂散动态范围 | 78 dBc |
| 三阶截获（TOI），1 GHz 时 | +22 dBm |
| 可用应用 | 是 |
| 最大实时带宽 | 255 MHz |
| 总体幅度精度 | ±0.19 dB |
| 带宽选件 | 25 MHz standard, 40 MHz, 1 GHz |
| 性能水平 | ◆◆◆◆◆◆ |
| 应用——蜂窝 |
|
| 应用——数字视频 | 无 |
| 应用——通用 |
|
| 应用——无线连通性 |
|
| 1 GHz 时的最大三阶动态范围 | 无 |
| 100% 截获概率的最短信号持续时间 | 3.517 µs |
| 信掩比 > 60 dB 时的可检测信号持续时间 | 3.33 ns |
| 显示视图 |
|
| 触发 |
|
| 使用频率模板触发的应用软件 |
|
| 2 GHz 时的 DANL，不配备前置放大器 | -151 dBm/Hz |
| 台式 | 是 |
| Real-Time Data Streaming | 是 |
| Maximum bandwidth when measuring PVT | 255 MHz |
选件
| Bandwidth | |||
| N9041B-H1G | Analysis Bandwidth, 1 GHz | ||
| N9041B-B25 | Analysis Bandwidth, 25 MHz (standard) | ||
| N9041B-B40 | Analysis Bandwidth, 40 MHz | ||
| Calibration | |||
| N9041B-UK6 | Commercial Calibration Test Data | ||
| Connector Options | |||
| N9041B-ALV | Auxiliary Log Video Output | ||
| N9041B-CRP | Connector Rear, Programmable IF Output | ||
| N9041B-CRW | Connector, IF Out, Ultra-wide bandwidth | ||
| N9041B-YAV | Screen Video, Log Video and Linear Video | ||
| Frequency Range | |||
| N9041B-590 | Frequency Range, 2 Hz to 90 GHz | ||
| N9041B-5CX | Frequency Range, 2 Hz to 110 GHz | ||
| Performance Features | |||
| N9041B-EA3 | Electronic Attenuator, up to 3.6 GHz | ||
| N9041B-EDC | External digitizer control | ||
| Preamplifier | |||
| N9041B-P50 | Preamplifier, 50 GHz | ||
| Security Features | |||
| N9041B-SF1 | Security Features, Exclude Launching Programs | ||
| N9041B-SF2 | Security Features, Prohibit Saving Results | ||
| N9041B-SSD | Additional Removable Solid State Drive | ||
| N9041B-SS1 | Additional removable solid state drive, Win10 | ||
| Accessories | |||
| 1DVR001A | ROM/CD-R/RW drive | ||
| 1MSE001A | Mouse | ||
| MLP001A | Minimum loss pad, 50 to 75 ohm | ||
| N9041B-2CM | Rack mount flange kit 265.9mm H (6U) - two flange brackets, two standard rails | ||
| N9041B-2CP | Rack mount flange and handle kit 265.9mm H (6U) - two brackets, handles, rails | ||
| Application Software with Subscription | |||
| N6141EM0E | EMI Measurement Application | ||
| N9061EM0E | Remote Language Compatibility Measurement Application | ||
| N9062EM0E | SCPI Language Compatibility Measurement Application | ||
| N9063EM0E | Analog Demodulation Measurement Application | ||
| N9067EM0E | Pulse Analysis Measurement Application | ||
| N9068EM0E | Phase Noise Measurement Application | ||
| N9069EM0E | Noise Figure Measurement Application | ||
| N9071EM0E | GSM/EDGE/Evo Measurement Application | ||
| N9073EM0E | W-CDMA/HSPA+ Measurement Application | ||
| N9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9077EM1E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9080EM0E | LTE and LTE-Advanced FDD Measurement Application | ||
| N9080EM3E | NB-IoT and eMTC FDD Measurement Application | ||
| N9081EM0E | Bluetooth (TM) Measurement Application | ||
| N9082EM0E | LTE and LTE-Advanced TDD Measurement Application | ||
| N9084EM0E | Short Range Communications Measurement Application | ||
| N9085EM0E | 5G NR Measurement Application | ||
| N9041RT1B | Real-time analysis up to maximum available BW, Basic Detection | ||
| N9041RT2B | Real-time analysis up to maximum available BW, Optimum Detection | ||
| N90EMEMCB | Basic EMC Functionality | ||
| N90EMFP2B | Fast Power, up to 510 MHz Bandwidth | ||
| N90EMFT1B | Frequency Mask Trigger, Basic Detection | ||
| N90EMFT2B | Frequency Mask Trigger, Optimum Detection | ||
| N90EMRBEB | Resolution Bandwidth Extended | ||
| N9054EM0E | VMA Vector Modulation Analysis Measurement Application | ||
| N9054EM1E | Vector Modulation Analysis Custom OFDM Application | ||
| N9080EM4E | LTE V2X measurement application | ||
| N9072EM0E | cdma2000 measurement application, remote control only | ||
| N9076EM0E | 1xEV-DO measurement application, remote control only | ||
| N9079EM0E | TD-Scdma/HSPA measurement application, remote control only | ||
| 89601301C | Multi-vendor hardware connectivity | ||
| 89601AYAC | Digital demodulation analysis | ||
| 89601B7NC | 3G modulation analysis | ||
| 89601200C | Basic vector signal analysis and hardware connectivity | ||
| 89601B7RC | Wireless connectivity modulation analysis | ||
| 89601BHFC | Custom OFDM modulation analysis | ||
| 89601BHGC | LTE/LTE-A FDD modulation analysis | ||
| 89601BHHC | LTE/LTE-A TDD modulation analysis | ||
| 89601BHMC | DOCSIS modulation analysis | ||
| 89601BHNC | 5G NR modulation analysis | ||
| 89601BHPC | FMCW radar analysis | ||
| 89601BHQC | Pulse analysis | ||
| 89601BHTC | IoT modulation analysis | ||
| 89601BHXC | High throughput WLAN modulation analysis | ||
| Application Software | |||
| 89601B | - 89600 VSA 软件 | ||
| N9041B-890 | N9041BM bundle configuration | ||
| N9041B-891 | N9041BP bundle configuration | ||
