产品型号

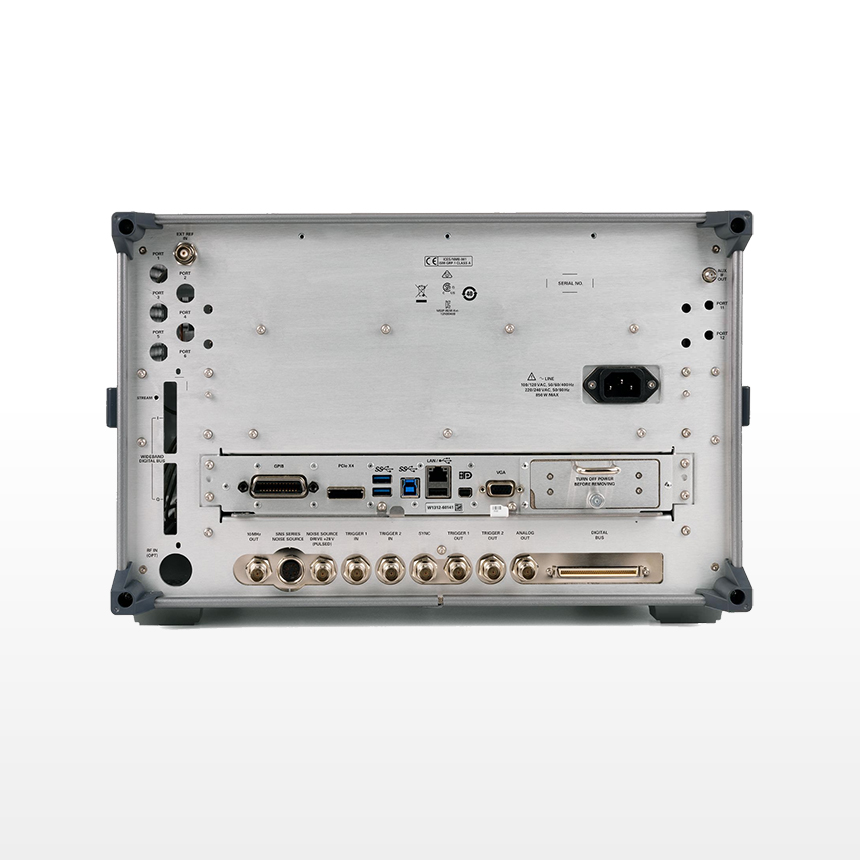

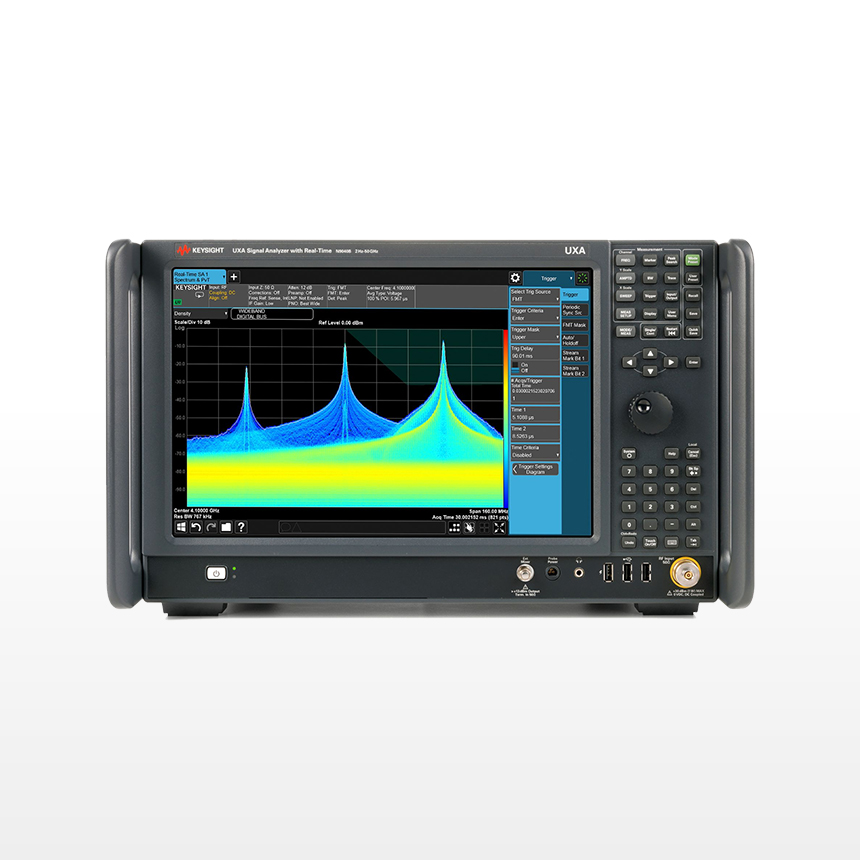

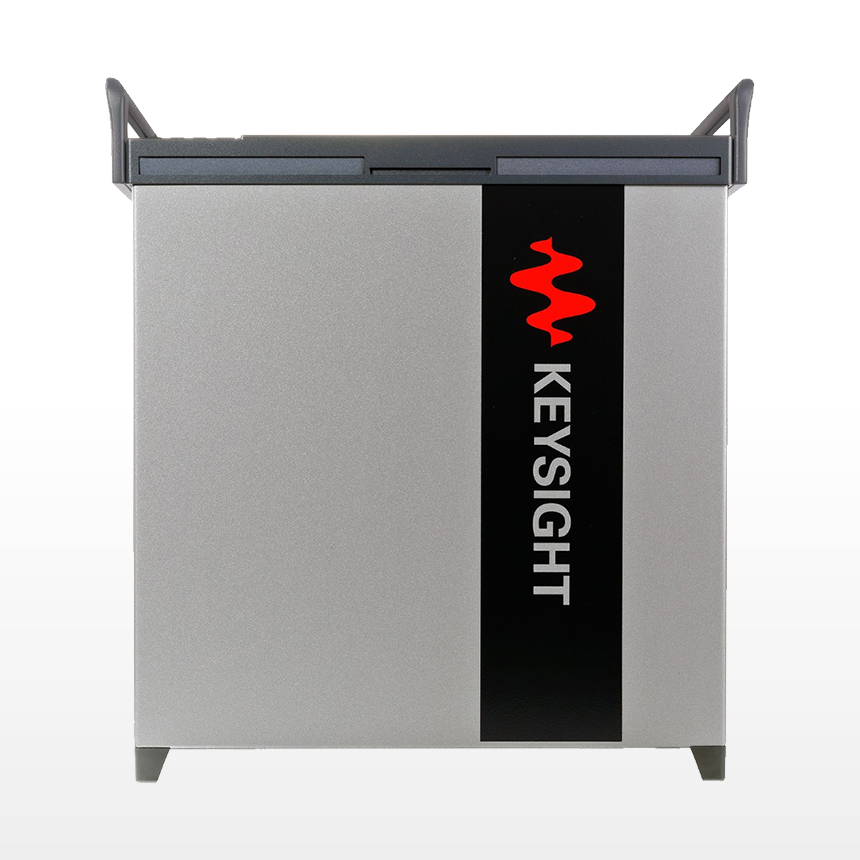

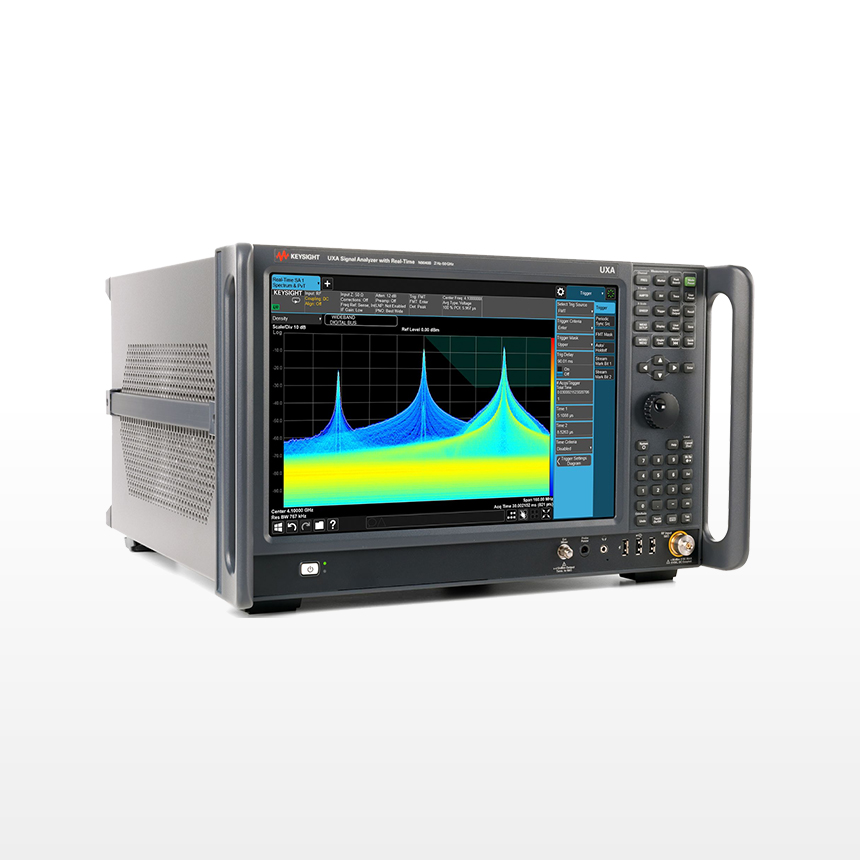

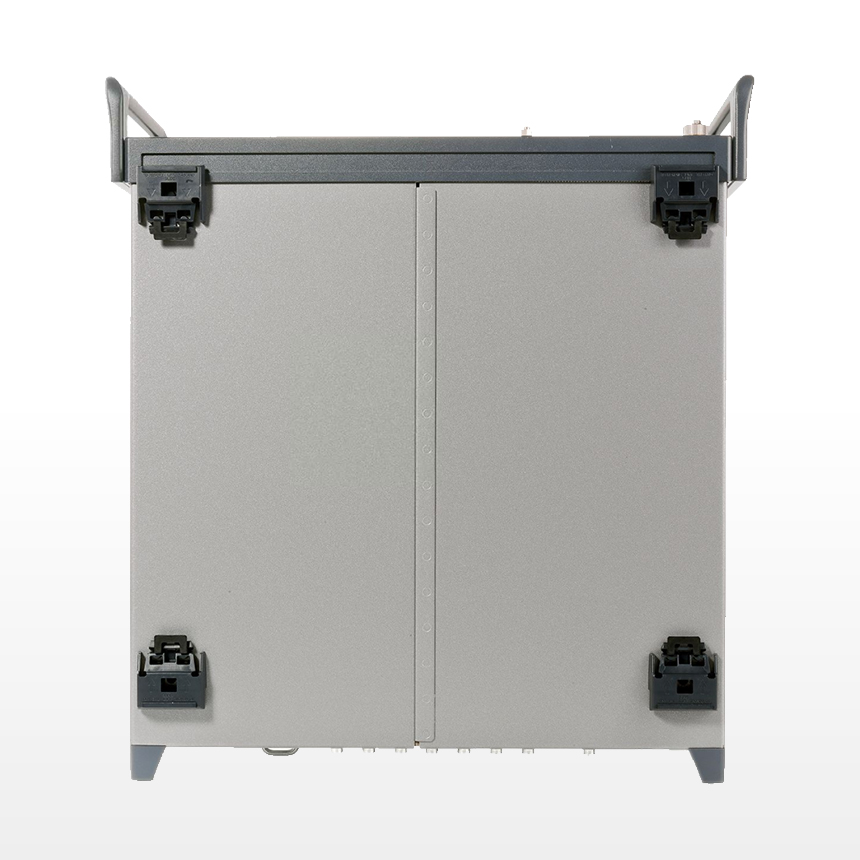

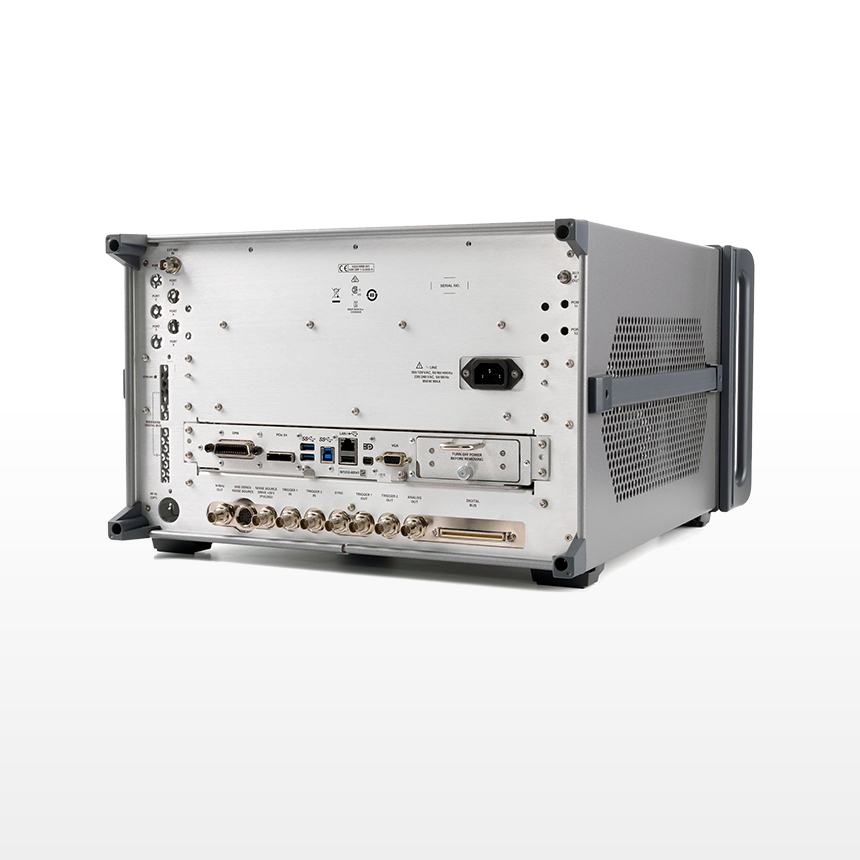

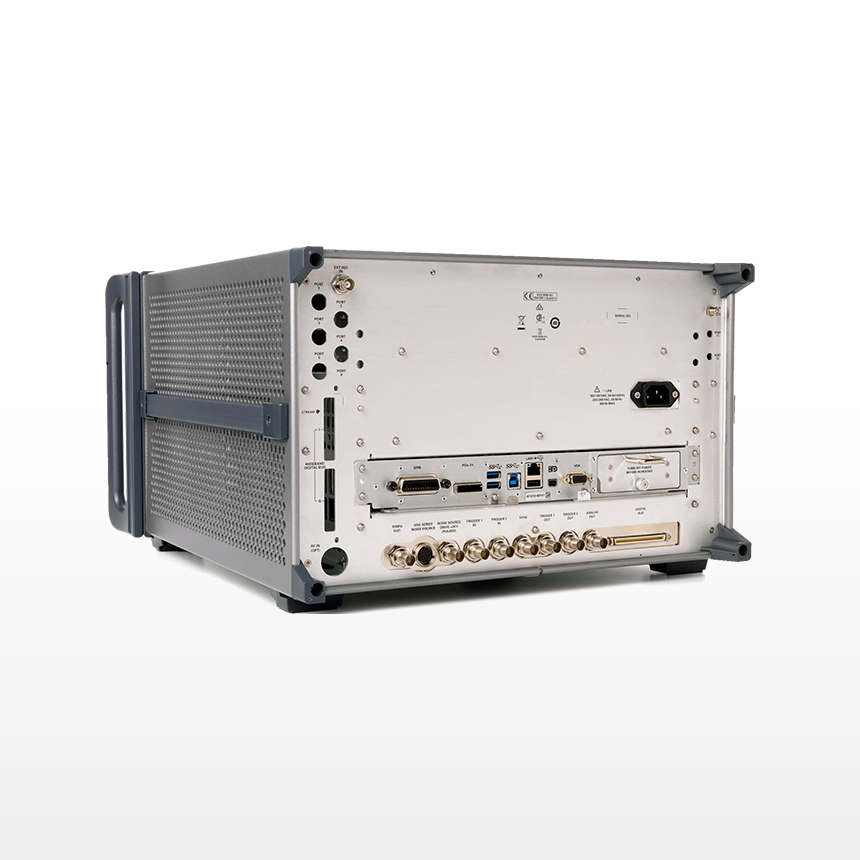

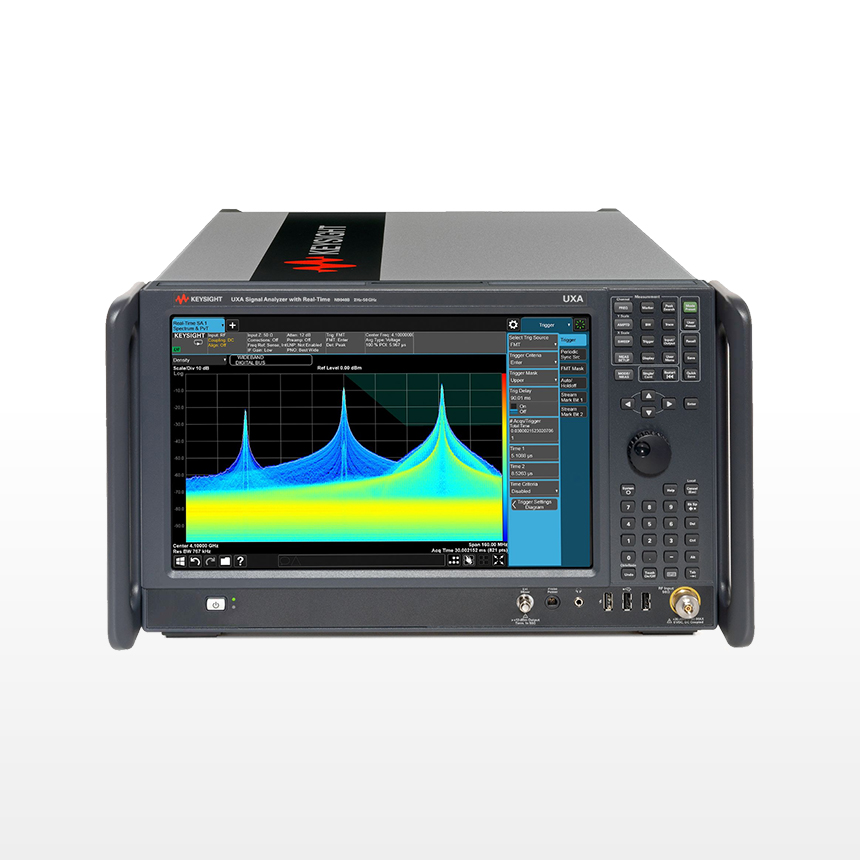

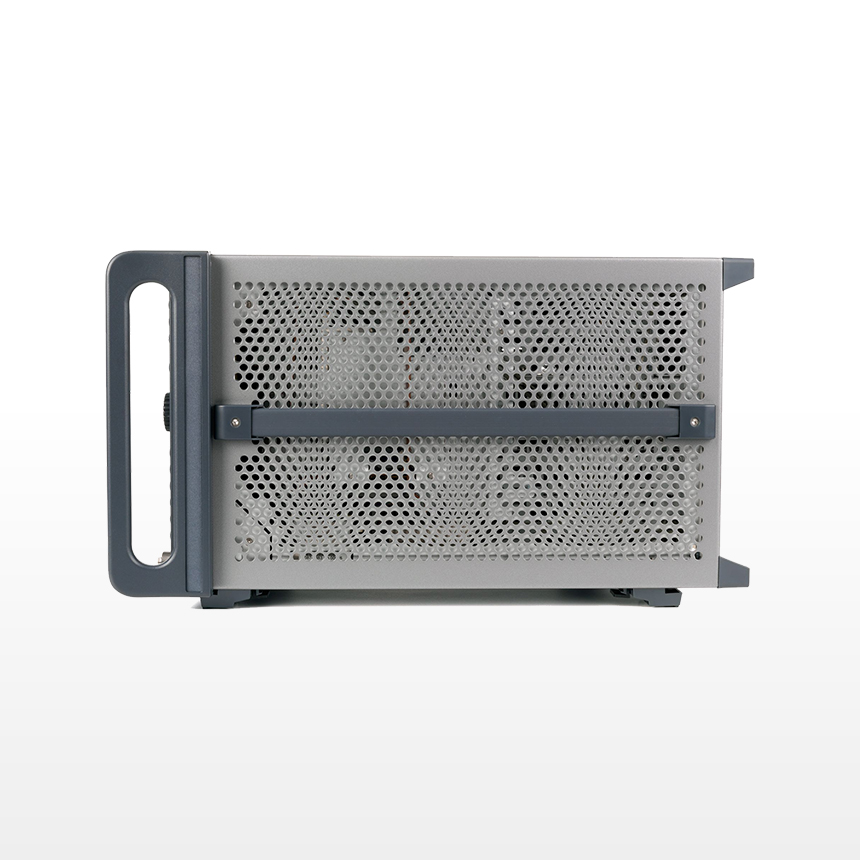

N9040B UXA 信号分析仪
多点触控，2 Hz 至 50 GHz
主要特性和功能
通过以更宽（高达 1 GHz）、更深的视野观测复杂信号，可以看到您的设计的真正性能；
凭借超低的相位噪声以及在 510 MHz dBc 带宽上高达 78 dBc 的无杂散动态范围，
能够测量设计的频谱纯度；
通过是德科技智能混频器可将射频输入频率扩展到 110 GHz，
使用第三方解决方案可以扩展到 THz 级；
通过无间隙的实时频谱分析，能够捕获间歇性信号；
通过改进的 DANL 低噪声路径，可以捕获低电平杂散信号。
X 系列信号分析仪
利用我们最先进的信号分析工具帮助您进行设计、测试，实现新的突破
提供从最高性能实时分析到低成本基本测量等多个选择
使用最广泛的特定应用软件，实现更深层次的故障诊断或执行一键式测量
产品通过售后升级服务可以伴随技术的变化演进，包括频率、带宽、实时、CPU 等
不论您使用哪一款仪器，从研发到生产都能保持 100% 的代码兼容性，可确保在公司内部实现一致性测量
通过切实可用的性能更快获得分析结果
全新多点触控用户界面让测量设置变得简单明了，并提供定制视图
利用实时频谱分析功能查看、捕获并分析最罕见的信号，包括已知和未知信号
凭借 510 MHz 带宽和 >75 dBc 无杂散动态范围，查看以往难以观测的信号
使用本底噪声扩展（NFE）技术将测量噪声降低最多 10 dB，可以提高低电平信号测量的精度
技术指标
| 标准衰减器衰减范围 | 70 dB |
|---|---|
| 标准衰减器步进 | 2 dB |
| 1 GHz 时的 DANL | -174 dBm |
| 最大分析带宽 | 1 GHz |
| 1 GHz 时，1 MHz 频偏处的相位噪声 | -146 dBc/Hz |
| 1 GHz 时，30 kHz 频偏处的相位噪声 | -136 dBc/Hz |
| 最大实时带宽 | 510 MHz |
| 带宽选件 | 25 standard, 40, 255, 510 MHz, 1 GHz |
| 性能水平 | ◆◆◆◆◆◆ |
| 应用——蜂窝 |
|
| 应用——数字视频 | 无 |
| 应用——通用 |
|
| 应用——无线连通性 |
|
| 100% 截获概率的最短信号持续时间 | 3.51 µs |
| 信掩比 > 60 dB 时的可检测信号持续时间 | 3.33 ns |
| 显示视图 |
|
| 触发 |
|
| 使用频率模板触发的应用软件 |
|
| 台式 | 是 |
| Real-Time Data Streaming | 是 |
| Maximum bandwidth when measuring PVT | 255 MHz |
选件
| Frequency range | |||
| N9040B-508 | 频率范围，2 Hz 至 8.4 GHz | ||
| N9040B-513 | 频率范围，2 Hz 至 13.6 GHz | ||
| N9040B-526 | 频率范围，2 Hz 至 26.5 GHz | ||
| N9040B-550 | Frequency Range 2 Hz To 50 GHz | ||
| N9040B-544 | Frequency Range 2 Hz To 44 GHz | ||
| Connector options | |||
| N9040B-ALV | 辅助对数视频输出 | ||
| N9040B-C35 | 连接器，射频输入，3.5 mm 阳头 | ||
| N9040B-CRP | 连接器，可编程后面板中频输出 | ||
| N9040B-YAV | Y 轴输出 | ||
| Preamplifier | |||
| N9040B-P08 | 前置放大器，8.4 GHz | ||
| N9040B-P13 | 前置放大器，13.6 GHz | ||
| N9040B-P26 | 前置放大器，26.5 GHz | ||
| N9040B-P44 | Preamplifier, 44 GHz | ||
| N9040B-P50 | Preamplifier, 50 GHz | ||
| Bandwidth | |||
| N9040B-B2X | Analysis Bandwidth, 255 MHz | ||
| N9040B-B5X | Analysis Bandwidth, 510 MHz | ||
| N9040B-B25 | 分析带宽，25 MHz | ||
| N9040B-B40 | Analysis Bandwidth, 40 MHz | ||
| N9040B-H1G | 1 GHz 分析带宽 | ||
| Performance options | |||
| N9040B-EA3 | 电子衰减器，3.6 GHz | ||
| N9040B-RTS | Real-Time Wideband I/Q Data Streaming | ||
| Calibration options | |||
| N9040B-A6J | ANSI Z540 一致性校准 | ||
| N9040B-UK6 | 包含测试数据的商业校准证书 | ||
| Security features | |||
| N9040B-SF1 | 安全特性，不包括启动程序 | ||
| N9040B-SF2 | 安全特性，禁止保存结果 | ||
| N9040B-SSD | 额外的可拆卸固态硬盘 | ||
| N9040B-SS1 | Additional removable solid state drive, Win10 | ||
| N9040B-DVR | USB DVD-ROM/CD-R/RW 驱动器 | ||
| N9040B-MLP | 50 至 75 Ω 最小损耗衰减器（N 型至 BNC） | ||
| N9040B-MSE | Mouse, USB | ||
| N9040B-2CM | Rack mount flange kit 265.9mm H (6U) - two flange brackets, two standard rails, DARK COLORS | ||
| N9040B-2CP | Rack mount flange and handle kit 265.9mm H (6U) - two brackets, handles, rails, DARK COLORS | ||
| Application software | |||
| 89601B | - 89600 VSA 软件 | ||
| N6171A | MATLAB 软件 | ||
| Additional documentation | |||
| N9040B-AB1 | Korean localization, user interface and getting started guide | ||
| N9040B-AB2 | Chinese localization, user interface and getting started guide | ||
| N9040B-ABF | French localization, user interface and getting started guide | ||
| N9040B-ABJ | Japanese localization, user interface and getting started guide | ||
| N9040B-AKT | Russian localization, user interface and getting started guide | ||
| N9040B-ABE | Spanish localization, user interface and getting started guide | ||
| N9040B-RTR | Real-time Spectrum Recorder and Analyzer Application Example, License | ||
| Application Software with Subscription | |||
| N6141EM0E | EMI Measurement Application | ||
| N9061EM0E | Remote Language Compatibility Measurement Application | ||
| N9062EM0E | SCPI Language Compatibility Measurement Application | ||
| N9063EM0E | Analog Demodulation Measurement Application | ||
| N9067EM0E | Pulse Analysis Measurement Application | ||
| N9068EM0E | Phase Noise Measurement Application | ||
| N9069EM0E | Noise Figure Measurement Application | ||
| N9071EM0E | GSM/EDGE/Evo Measurement Application | ||
| N9073EM0E | W-CDMA/HSPA+ Measurement Application | ||
| N9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9077EM1E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9080EM0E | LTE and LTE-Advanced FDD Measurement Application | ||
| N9080EM3E | NB-IoT and eMTC FDD Measurement Application | ||
| N9081EM0E | Bluetooth (TM) Measurement Application | ||
| N9082EM0E | LTE and LTE-Advanced TDD Measurement Application | ||
| N9084EM0E | Short Range Communications Measurement Application | ||
| N9085EM0E | 5G NR Measurement Application | ||
| N9040RT1B | 高达 510 MHz 带宽的实时分析，基本检测 | ||
| N9040RT2B | 高达 510 MHz 带宽的实时分析，优化检测 | ||
| N90EMDUAB | Duplex IF RTSA | ||
| N90EMEMCB | Basic EMC Functionality | ||
| N90EMESCB | External Source Control | ||
| N90EMFP2B | Fast Power, up to 510 MHz Bandwidth | ||
| N90EMFT1B | Frequency Mask Trigger, Basic Detection | ||
| N90EMFT2B | Frequency Mask Trigger, Optimum Detection | ||
| N90EMRBEB | Resolution Bandwidth Extended | ||
| N90EMTDSB | Time Domain Scan | ||
| N9054EM0E | VMA Vector Modulation Analysis Measurement Application | ||
| N9054EM1E | Vector Modulation Analysis Custom OFDM Application | ||
| N9080EM4E | LTE V2X measurement application | ||
| N9072EM0E | cdma2000 measurement application, remote control only | ||
| N9076EM0E | 1xEV-DO measurement application, remote control only | ||
| N9079EM0E | TD-Scdma/HSPA measurement application, remote control only | ||
| 89601301C | Multi-vendor hardware connectivity | ||
| 89601AYAC | Digital demodulation analysis | ||
| 89601B7NC | 3G modulation analysis | ||
| 89601B7RC | Wireless connectivity modulation analysis | ||
| 89601BHFC | Custom OFDM modulation analysis | ||
| 89601BHGC | LTE/LTE-A FDD modulation analysis | ||
| 89601BHHC | LTE/LTE-A TDD modulation analysis | ||
| 89601BHMC | DOCSIS modulation analysis | ||
| 89601BHNC | 5G NR modulation analysis | ||
| 89601BHPC | FMCW radar analysis | ||
| 89601BHQC | Pulse analysis | ||
| 89601BHTC | IoT modulation analysis | ||
| 89601BHXC | High throughput WLAN modulation analysis | ||
| 89601200C | Basic vector signal analysis and hardware connectivity | ||
| N9040B-890 | N9040BM bundle configuration | ||
| N9040B-891 | N9040BP bundle configuration | ||
