产品型号

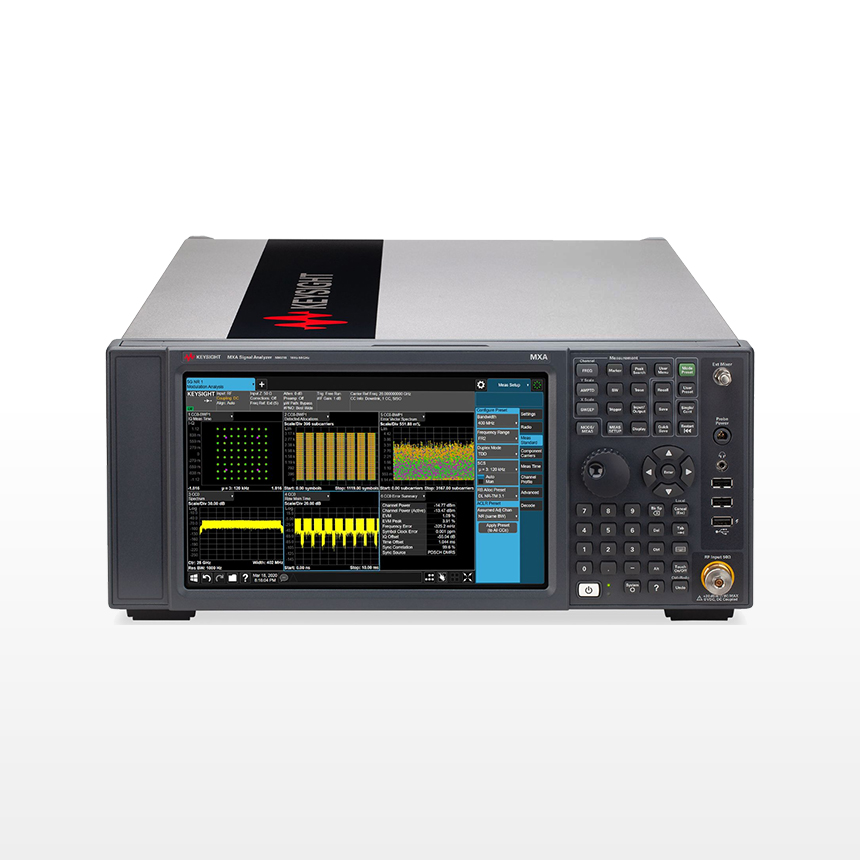

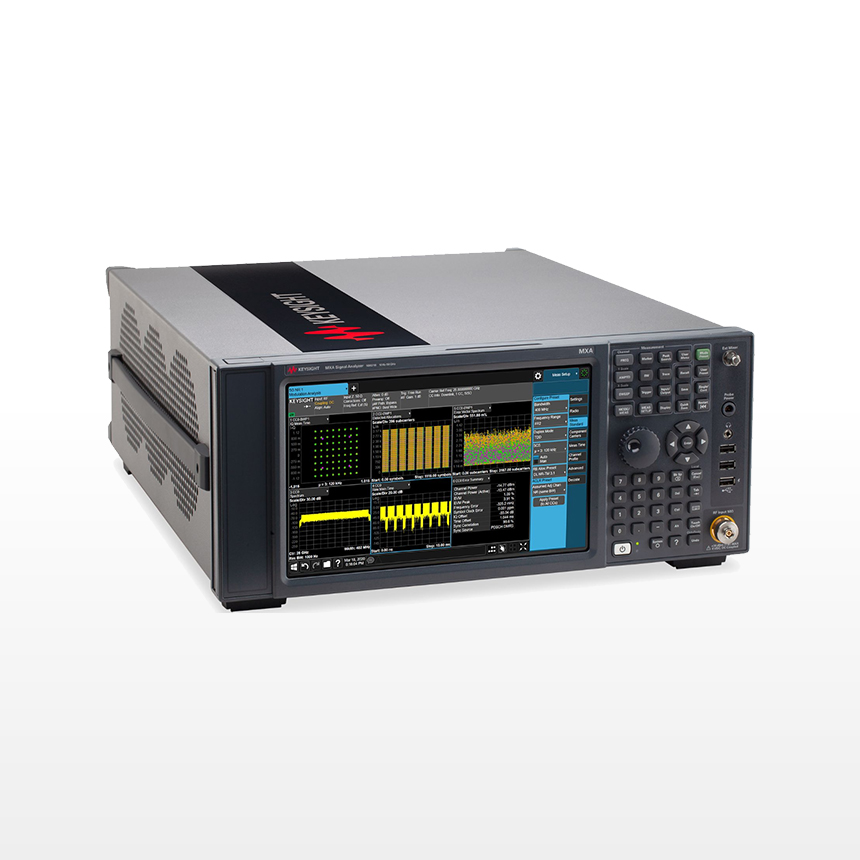

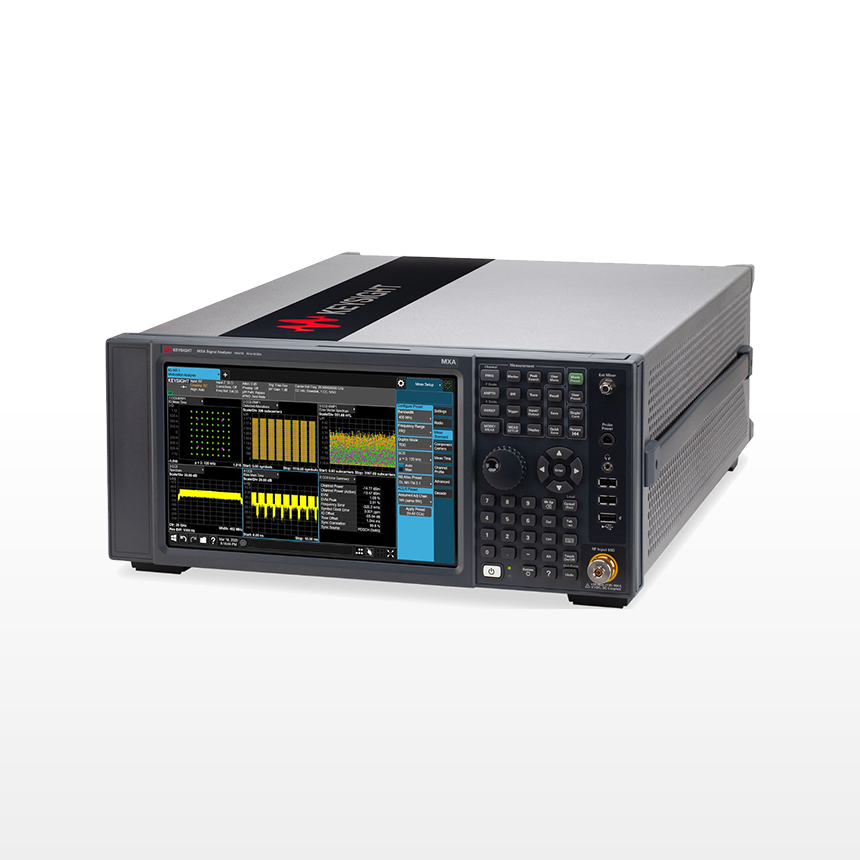

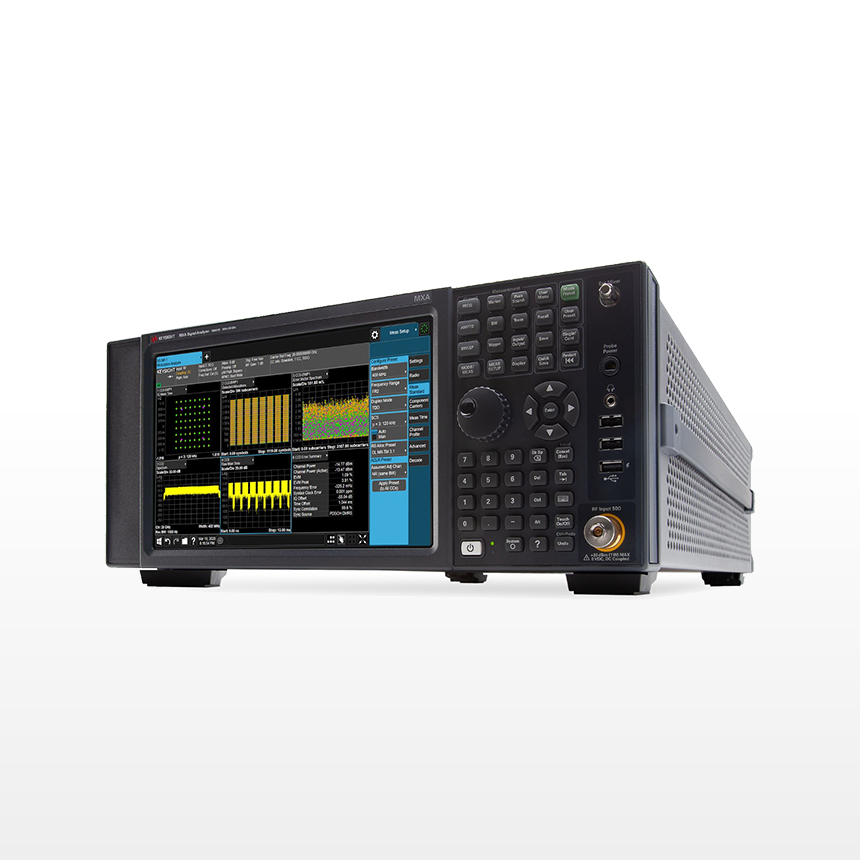

N9021B MXA 信号分析仪
多点触控，10 Hz 至 50 GHz
主要特性和功能
频谱分析仪测量应用软件；
I/Q 分析仪测量应用软件；
owerSuite 一键式功率测量；
四核高性能处理器、16 GB 内存、可拆卸固态硬盘；
Windows 10 IoT 企业版（与 WES7 相对应）；
分析带宽由带宽许可证决定。
X 系列信号分析仪
利用我们最先进的信号分析工具帮助您进行设计、测试，实现新的突破
提供从最高性能实时分析到低成本基本测量等多个选择
使用最广泛的特定应用软件，实现更深层次的故障诊断或执行一键式测量
产品通过售后升级服务可以伴随技术的变化演进，包括频率、带宽、实时、CPU 等
不论您使用哪一款仪器，从研发到生产都能保持 100% 的代码兼容性，可确保在公司内部实现一致性测量
通过切实可用的性能更快获得分析结果
全新多点触控用户界面让测量设置变得简单明了，并提供定制视图
利用实时频谱分析功能查看、捕获并分析最罕见的信号，包括已知和未知信号
凭借 510 MHz 带宽和 >75 dBc 无杂散动态范围，查看以往难以观测的信号
使用本底噪声扩展（NFE）技术将测量噪声降低最多 10 dB，可以提高低电平信号测量的精度
技术指标
| 频率选件 | 32, 44, 50 GHz, Mixers to 1.1 THz |
|---|---|
| 实时带宽选件 | 255, 510 MHz |
| 1 GHz 时的 DANL | -172 dBm/Hz |
| 最大分析带宽 | 255, 510 MHz |
| 1 GHz 时，10 kHz 频偏处的相位噪声 | -129 dBc/Hz |
| 无杂散动态范围 | 72 dBc |
| 总体幅度精度 | 0.41 dB |
| 性能水平 | ◆◆◆◆◇◇ |
| 应用——蜂窝 |
|
| 应用——通用 |
|
| 100% 截获概率的最短信号持续时间 | 3.57 μs |
选件
| Bandwidth | |||
| N9021B-B2X | Analysis bandwidth, 255 MHz | ||
| N9021B-B5X | Analysis bandwidth, 510 MHz | ||
| Calibration Options | |||
| N9021B-UK6 | Commercial calibration certificate with test data | ||
| Connection Options | |||
| N9021B-CR3 | Connector Rear, Wideband IF output | ||
| N9021B-CRP | Connector, programmable rear IF output | ||
| N9021B-YAS | Y-Axis Screen Video Output | ||
| External Mixing | |||
| N9021B-EXM | External mixing | ||
| Frequency range | |||
| N9021B-532 | Frequency Range, 10 Hz to 32 GHz | ||
| N9021B-544 | Frequency Range, 10 Hz to 44 GHz | ||
| N9021B-550 | Frequency Range, 10 Hz to 50 GHz | ||
| Performance Options | |||
| N9021B-NF2 | Noise floor extension, instrument alignment | ||
| N9021B-PFR | Precision frequency reference | ||
| N9021B-DUA | Duplex IF RTSA | ||
| N9021B-EA3 | Electronic attenuator, 3.6 GHz | ||
| N9021B-EDP | Enhanced display package license | ||
| N9021B-FP2 | Fast power, up to maximum available analysis bandwidth | ||
| N9021B-FT1 | Frequency mask trigger, basic detection | ||
| N9021B-FT2 | Frequency mask trigger, optimum detection | ||
| N9021B-MPB | Microwave preselector bypass | ||
| N9021B-RBE | Resolution bandwidth extended | ||
| N9021B-EMC | Basic EMC Functionality | ||
| Preamplifier | |||
| N9021B-P32 | Preamplifier, 32 GHz | ||
| N9021B-P44 | Preamplifier, 44 GHz | ||
| N9021B-P50 | Preamplifier, 50 GHz | ||
| Real time signal analysis | |||
| N9021B-RT1 | Real-Time Analysis, up to 510 MHz, Basic Detection, Multi-touch | ||
| N9021B-RT2 | Real-time Spectrum Analysis up to 510 MHz, Optimum Detection, Multi-touch | ||
| Security - PC features | |||
| N9021B-SS1 | Additional removable solid state drive, Win10 | ||
| N9021B-SF1 | Security features, exclude launching programs | ||
| N9021B-SF2 | Security features, prohibit saving results | ||
| Source Connectivity | |||
| N9021B-ESC | External source control | ||
| Application Software with Subscription | |||
| N9085EM0E | 5G NR Measurement Application | ||
| 89601BHXC | High throughput WLAN modulation analysis | ||
| N9068EM0E | Phase Noise Measurement Application | ||
| N9069EM0E | Noise Figure Measurement Application | ||
| N9073EM0E | W-CDMA/HSPA+ Measurement Application | ||
| N9080EM0E | LTE and LTE-Advanced FDD Measurement Application | ||
| N9080EM3E | NB-IoT and eMTC FDD Measurement Application | ||
| N9082EM0E | LTE and LTE-Advanced TDD Measurement Application | ||
| 89601200C | Basic vector signal analysis and hardware connectivity | ||
| 89601301C | Multi-vendor hardware connectivity | ||
| 89601AYAC | Digital demodulation analysis | ||
| 89601B7NC | 3G modulation analysis | ||
| 89601B7RC | Wireless connectivity modulation analysis | ||
| 89601BHFC | Custom OFDM modulation analysis | ||
| 89601BHGC | LTE/LTE-A FDD modulation analysis | ||
| 89601BHHC | LTE/LTE-A TDD modulation analysis | ||
| 89601BHMC | DOCSIS modulation analysis | ||
| 89601BHNC | 5G NR modulation analysis | ||
| 89601BHPC | FMCW radar analysis | ||
| 89601BHQC | Pulse analysis | ||
| 89601BHTC | IoT modulation analysis | ||
| N9054EM0E | VMA Vector Modulation Analysis Measurement Application | ||
| N9054EM1E | Vector Modulation Analysis Custom OFDM Application | ||
| N9080EM4E | LTE V2X measurement application | ||
| N6141EM0E | EMI Measurement Application | ||
| N9061EM0E | Remote Language Compatibility Measurement Application | ||
| N9062EM0E | SCPI Language Compatibility Measurement Application | ||
| N9063EM0E | Analog Demodulation Measurement Application | ||
| N9067EM0E | Pulse Analysis Measurement Application | ||
| N9071EM0E | GSM/EDGE/Evo Measurement Application | ||
| N9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9077EM1E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | ||
| N9081EM0E | Bluetooth (TM) Measurement Application | ||
| N9084EM0E | Short Range Communications Measurement Application | ||
| Accessories | |||
| 1CM113A | Rack mount flange kit 177.0mm H (4U) - two flange brackets, 2015 color | ||
| 1CR014A | Rack Slide Kit for 17-inch and 20-inch Mounting Holes | ||
| 1DVR001A | ROM/CD-R/RW drive | ||
| 1MSE001A | Mouse | ||
| MLP001A | Minimum loss pad, 50 to 75 ohm | ||
